Casing Bushing & Insert Bowl

Category: Bushing
Views: 1330

  • PRODUCT DETAIL

The CU, CUL, CB and other types of Casing Bushing can handle casings from 2-3/8” to 30in OD. Type CU & CUL are solid bushing and Type CB is split bushing. They are designed and manufactured according to API SPEC 7K Specification for drilling and well servicing equipment.



Main Technical Parameters

Rotary Table Size

17-1/2~20-1/2

27-1/2

27-1/2

37-1/2

Model

CU

CUL

CB

Tubular OD in

2-3/8~8-5/8

Bushing   3102   + Insert Bowl 1809

Bushing 3103 + Insert Bowl 1809

Bushing 6695 + Insert Bowl 6126A + 6115

Bushing   (18-5/8”~20”) + Insert Bowl 6126A + 6115

9-5/8~10-3/4

Bushing   3102   +Insert Bowl 1902

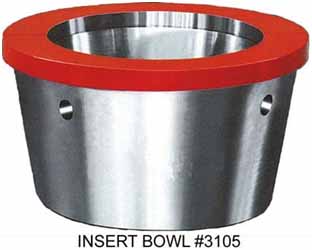

Bushing 3103 + Insert Bowl 3105+1902

Bushing 6695 + Insert Bowl 6126A + 6114

Bushing   (18-5/8”~20”) +Insert Bowl 6126A + 6114

11-3/4~13-3/8

Bushing 3102

Bushing 3103 + Insert Bowl 3105

Bushing 6695 + Insert Bowl 6126A

Bushing   (18-5/8”~20”) + Insert Bowl 6126A

16

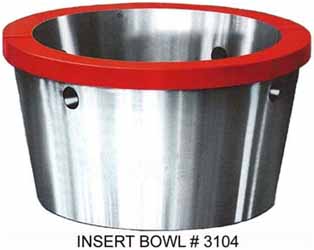

Bushing 3103 + Insert Bowl 3104

Bushing 6695 + Insert Bowl 6127

Bushing   (18-5/8”~20”) + Insert Bowl 6127

18-5/8~20

Bushing 3103

Bushing 6695

Bushing (18-5/8”~20”)

24

Bushing 11253

26

Bushing 16454

30

Bushing 11763
