Float Valve Stabilizer

Category: Stabilizer
Views: 1140

  • PRODUCT DETAIL

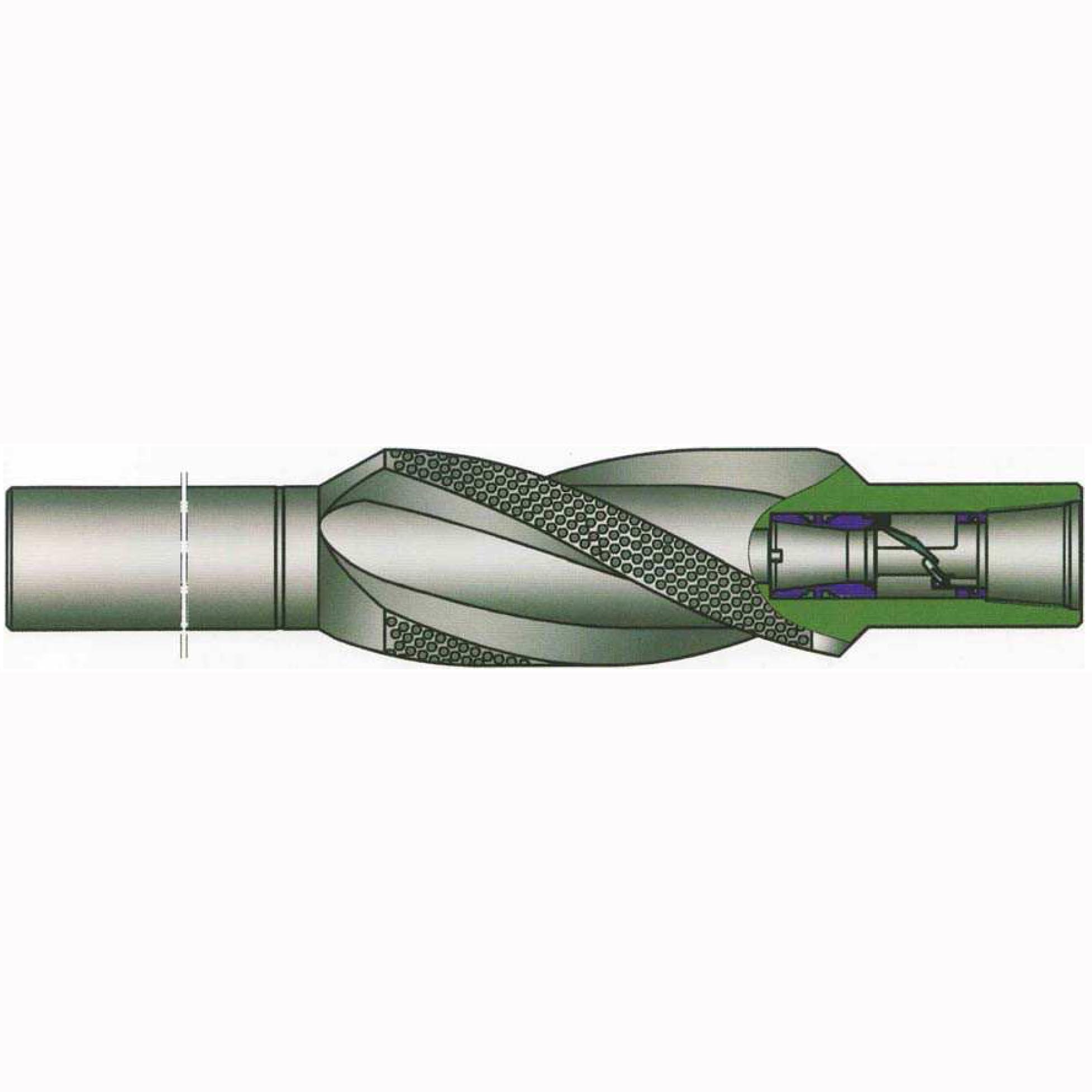

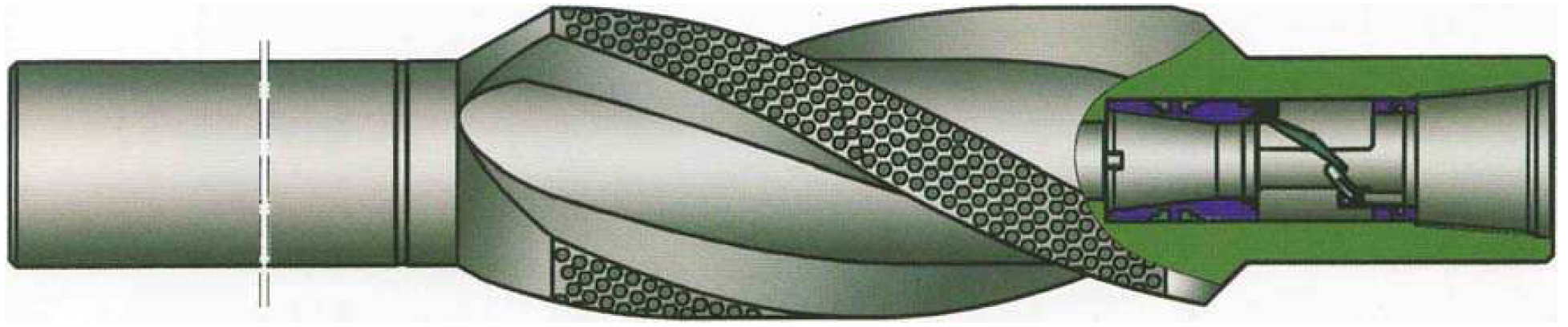

Float valve stabilizer is effective tool in drilling operation. The stabilizer is connected at upper part of drill bit, and the float valve assembly in stabilizer is near the bit thread. Such structure of stabilizer can realize the automatically shutting off inside bore of tool to avoid the accident.


Main Technical Parameter

Stabilizer Type

Stabilizer Body O.D. (mm)

Stabilizer Thread

Float Valve Assembly O.D. (mm)

Float Valve Assembly Length (mm)

FV711

228 241

7-5/8 REG

121

298.4

FV588

228 241

7-5/8 REG

121

298.4

FV444

228 241

7-5/8 REG

121

298.4

FV311

203 209.6

6-5/8 REG

121

298.4

FV241

178

4-1/2 IF

98

247.6

FV214

178 165

4-1/2 REG

88

211.14

FV152

127 121

3-1/2 REG

61

165.1
